AJ 37 - SAAB 37 Viggen (1972-2005)

Page 6 (of 11)

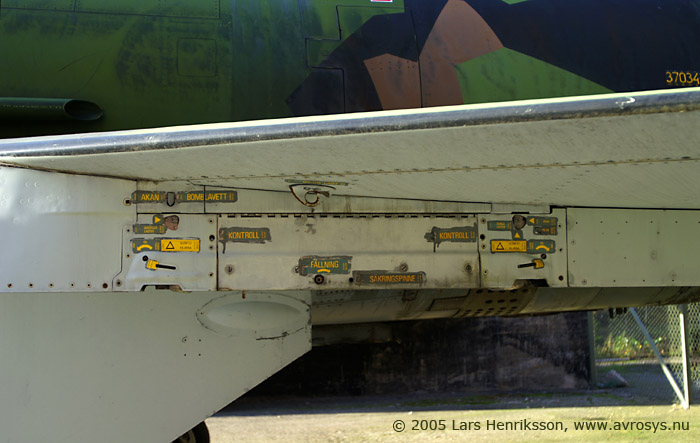

Swedish Air Force attack aircraft SAAB AJ 37 Viggen, # 37034. Photo when displayed at Innovatum, Trollhättan in October 2005. © Lars Henriksson, www.avrosys.nu.
Swedish Air Force attack aircraft SAAB AJ 37 Viggen, # 37034. Photo when displayed at Innovatum, Trollhättan in October 2005. © Lars Henriksson, www.avrosys.nu.

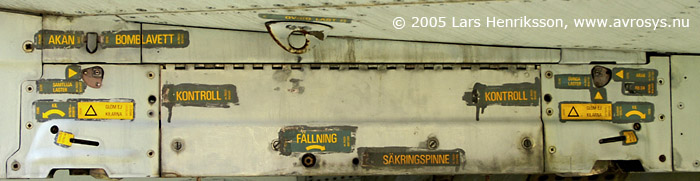

The largest yellow texts read:

AKAN = Automatic Cannon

SAMTLIGA LASTER = All Loads

BOMBLAVETT = Bomb Pylon

KONTROLL = Contol

FÄLLNING = Launching

SÄKRINGSPINNE = Safety Stick

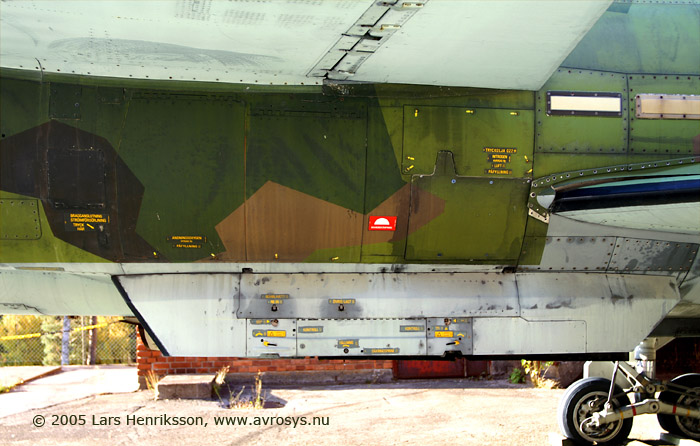

Swedish Air Force attack aircraft SAAB AJ 37 Viggen, # 37034. Photo when displayed at Innovatum, Trollhättan in October 2005. © Lars Henriksson, www.avrosys.nu.


  Swedish Air Force attack aircraft SAAB AJ 37 Viggen, # 37034. Photo when displayed at Innovatum, Trollhättan in October 2005. © Lars Henriksson, www.avrosys.nu.

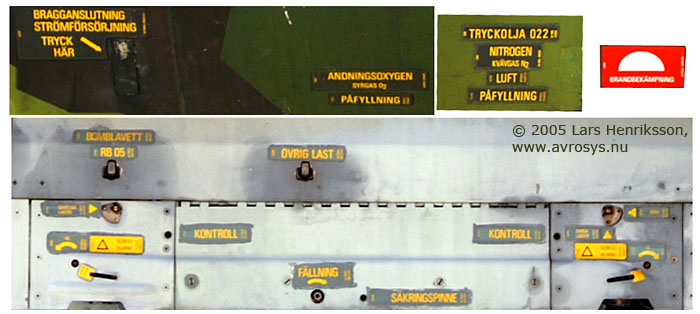

The largest yellow texts read:

BRAGGANSLUTNING STRÖMFÖRSÖRJNING TRYCK HÄR = BRAGG Connection Current Supply Press Here

(BRAGG is an acronym for ”Beredskapsaggregat (”Preparedness Unit”) that supplied the aircraft with electric current and cooling air

ANDNINGSOXYGEN SYRGAS O2 PÅFYLLNING = Breathing Oxygen Oxygen Filling

TRYCKOLJA 022 = Pressure Oil 022

NITROGEN KVÄVGAS N2 = Nitrogene Nitrogene N2

LUFT PÅFYLLNING = Air Filling

BOMBLAVETTER = Bomb Pylons

RB 05 = Swedish Air-Surface Missile RB 05

ÖVRIG LAST = Other Loads
