6 - Fairchild 24 De Luxe (1940-1943)
|
||||||
|
|
Page 2 (3) |
|
||||
|
|
||||||
| Painting and Marking |

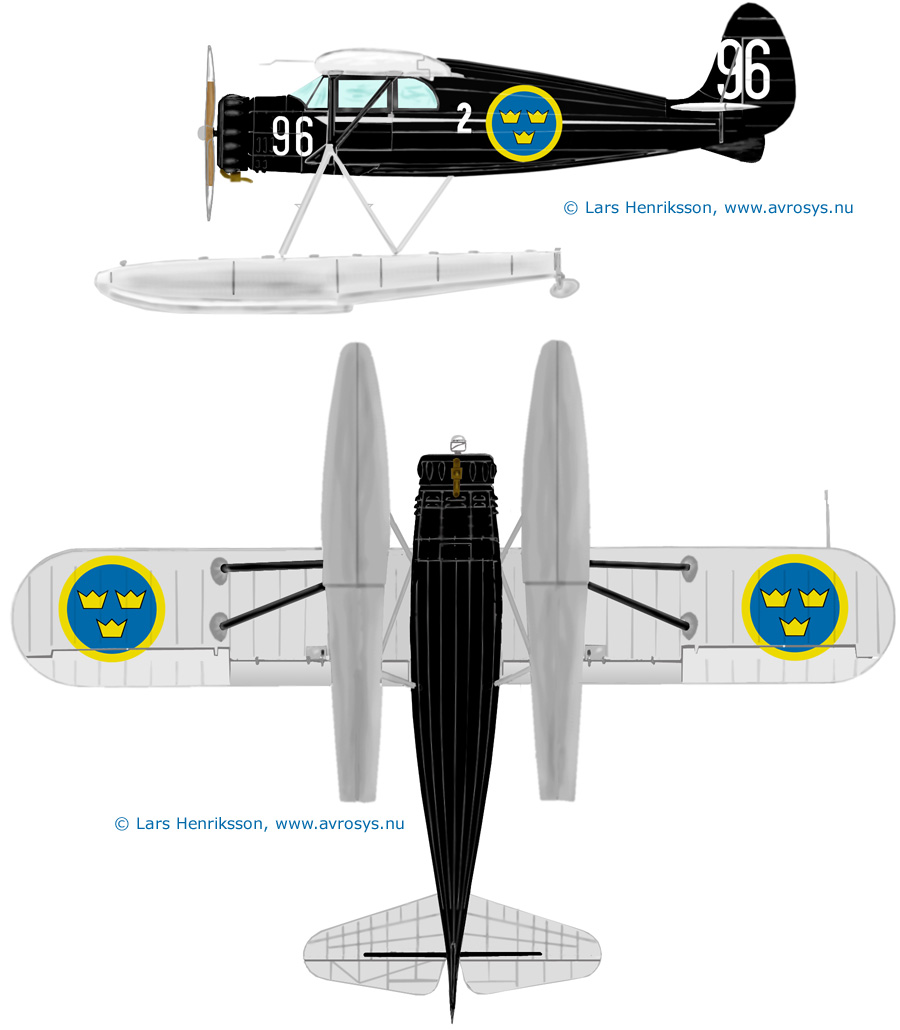

Note the aircraft drawings at the end of thise page! |
|||||
| Colour Scheme for Tp 6 | ||||||
| Fuselage | Black (gloss or semi-gloss) | |||||
| Wing struts | Black (gloss or semi-gloss) | |||||
| Wings and stabilizer | Silver | |||||
| Floats with fittings | Silver | |||||
| Float landing gear | Silver | |||||
| Speed stripes on sides of fuselage | Silver | |||||
| Propeller | Of mahogany with white tips | |||||
| Marking of Tp 6 | ||||||
|
Crown Marks model 1940: Underside of wings Fuselage No markings on the top
|
Diameter of Crown Mark:
1320 mm |
 |
||||
| White painted Numbers | ||||||
|
Code Number "96" on Fin
Code Number "96" Forward |
Height of each number 1000 mm, Width of each number 400 mm
|
 |
||||
|
Unit Number "2" on fuselage
|
Height 400 mm |
 |
||||
 |
||||||
|
|
 |
|
||||
|
|
||||||
 |
||||||
|
